Mh-Sm160 Manual Hydraulic Butt Welding Machine
- Used for welding PE – PP – PVDF pipes and fittings with diameters of 50 – 63 – 75 – 90 – 110 – 110 – 125 – 140 – 160 mm up to 32 Bar.
- It provides powerful, easy and serial welding with the shortest operational installation in accordance with ISO 12176 – 1 international standards.
- It provides easy use thanks to its lightweight structure.
- Maximum working pressure is designed as 150 Bar.
- Suitable for operation at -10 C° ~+40 C° ambient temperature.

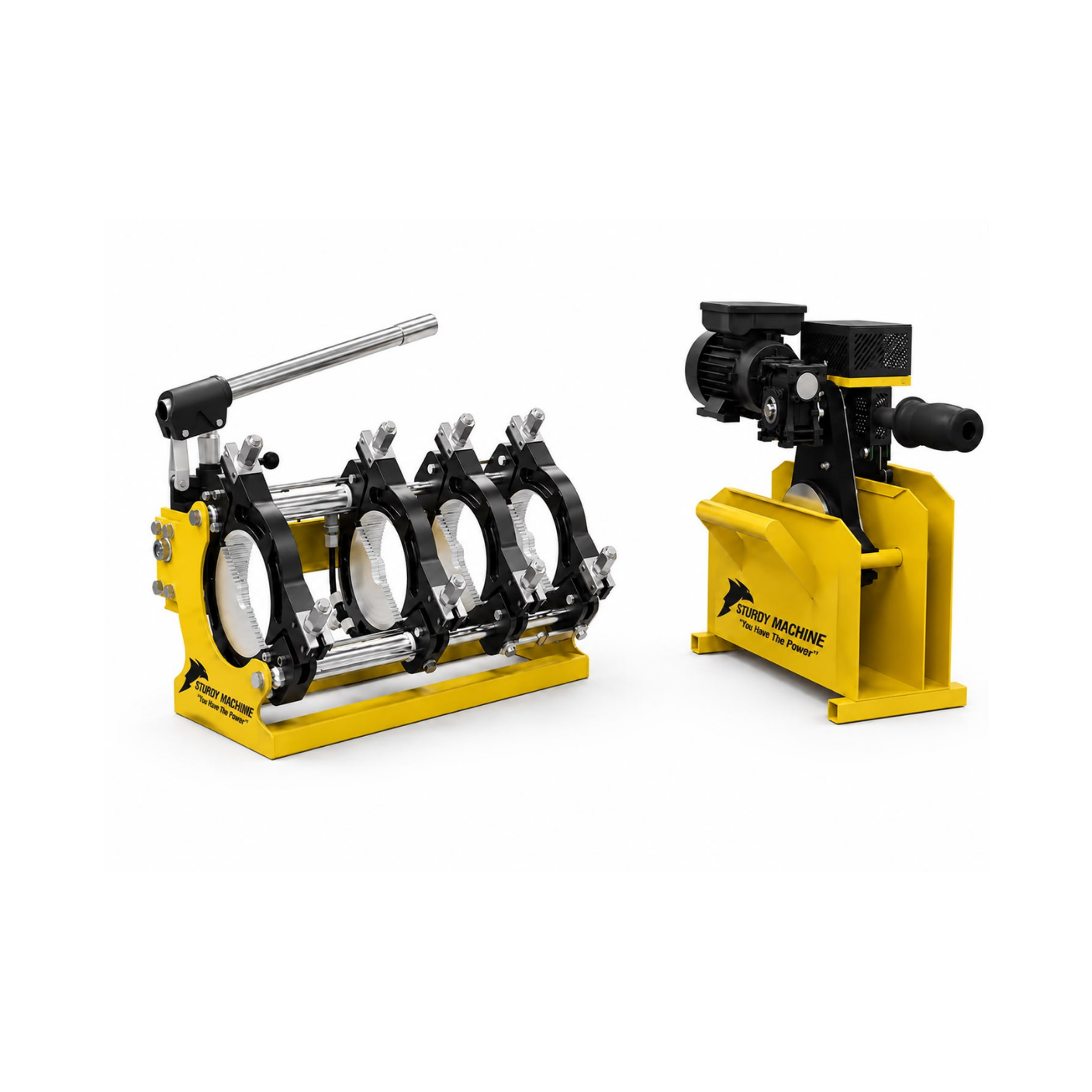

Manual Hydraulic Butt Welding Machine Body
With two movable and two fixed clamps on it, it supports the plastic pipes to be welded and provides fixation and centering.
Hydraulic pressure force is applied to the system.
With two pistons on the carrier shaft, this force drives the moving clamps forward and backward, providing the movement required for the welding process to take place.
Manual Hydraulic Butt Welding Machine Trimmer
It is the butt welding machine element that performs the butt cleaning of the pipes fixed and centered on the main body with two rotating blades on the right and left sides and the cutting blades on these blades before the heating process and makes them ready for heating.
The rotary movement of the trimmer is provided by the motor and reducer group.
MH-SM160 Butt Welding Machine The trimmer unit creates burr-free and parallel pipe surfaces.
Manual Hydraulic Butt Welding Machine Heater
It is the butt welding machine element that prepares the pipe butt surfaces, which are brought to the desired roughness with the trimming process, for the joining process by heating them with the heating plate.
The temperature setting of the heater is made by the digital temperature adjustment thermostat on the heater plate.
Manual Hydraulic Butt Welding Machine Enclosure Box
The casing and support box prevents the heater from losing heat and the trimmer protects the heater against external influences (impact, water, etc.) by supporting it.
| Teknik Özellikler / Technical Specifications | |
|---|---|
| Kaynak Çapı / Welding Range | Ø 40 mm – Ø 160 mm (Ø40 mm, Ø50 mm, Ø63 mm, Ø75 mm, Ø90 mm, Ø110 mm, Ø125 mm, Ø140 mm, Ø160 mm) |
| Malzeme Cinsi / Pipe Types to Weld | PE – PP – PVDF |
| Boru Max. Basınç / Pipe Max. Pressure | PN32 |
| Isıtıcı Elektrik Gücü / Heater Electric Power | 220 V – 1,5 kW |
| Traşlayıcı Elektrik Gücü / Trimmer Electric Power | 220 V – 0,81 kW |
| Elektrik Sistemi / Electric System | Monofaze / Single Phase |
| Toplam Elektrik Sarfiyatı / Total Electricity Consumption | 2.31 kW |
| Çalışma Basıncı / Operating Pressure | 150 Bar |
| Gerekli Olan Jeneratör Gücü / Required Generator Power | 4 kVA |
| Çalışma Sıcaklığı / Working Temperature | (-10 C° ~ + 40 C°) |
| Hidrolik Yağı / Hydraulic Oil | Hydraulic 46 / 1 lt |
| İçindekiler / Content | |
| Kullanım Kılavuzu / User Manual | 1 ad/ pcs |
| Ana Gövde / Main Body | 1 ad/ pcs |
| Traşlayıcı / Trimmer | 1 ad/ pcs |
| Isıtıcı / Heater | 1 ad/ pcs |
| Muhafaza ve Destek Kutusu / Protective Casing | 1 ad/ pcs |
| Pafta / Stuffer | 48 ad/ pcs |
| Takım Çantası / Tool Bag | 1 ad / pcs |
| Paketleme Detayları / Packaging Details | |
| Ambalajın Cinsi / Type of Package | Tahta Sandık / Wooden Case |
| Kap Adedi / Number of Packages | 1 paket / pack |
| Ebatlar / Dimensions | 0,70 x 0,72 x 0,68 |
| Toplam Hacim / Total Volume | 0,342 m3 |
| Toplam Net Ağırlık / Total Net Weight | 46 kg |
| Toplam Brüt Ağırlık / Total Gross Weight | 66 kg |
