Açıklama

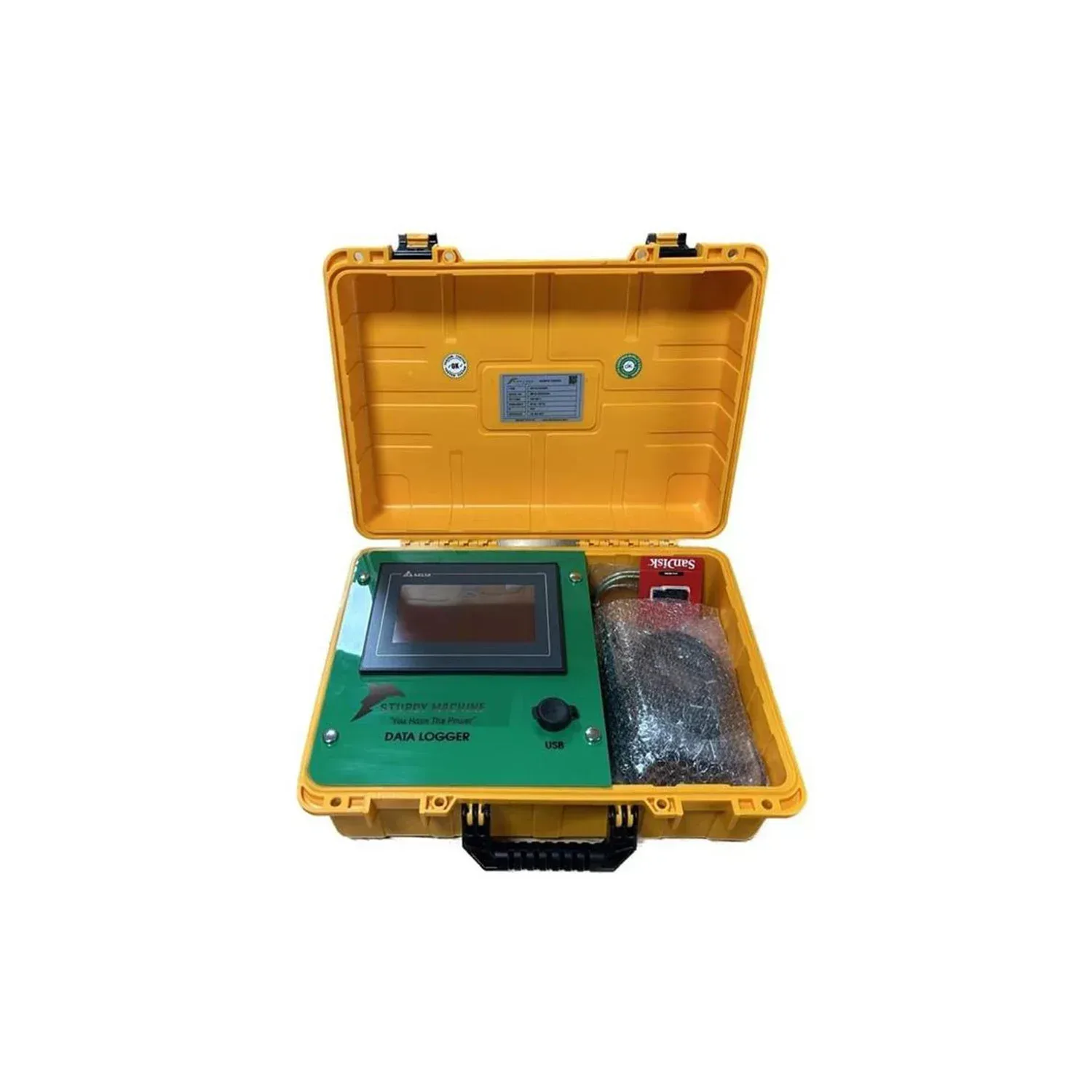

Dl-Sm Data Logger Plastik
| Automatic data logging | 4,000 reports |
|---|---|
| Data input | Manually with a 7” HMI touch screen |
| Monitoring Parameters | Welding pressures, welding times, memory control, heating element temperature |
| ISO 12176 traceability | Commission number, welder ID code, fitting code, 1st and 2nd pipe codes, pipe length, weather conditions, joint number, installing company |
| Welding standard | DVS 2207-1, DVS 2207-11, ISO 21307 |
| Data output | USB port for data transfer |
| Display | HMI 7” touch monitor |
| Approvals | CE, ISO 9001 |
| Languages | English, Turkish, Russian, Hungaria, Arabia |
| Battery power | (optional) |
| Settings | Manual welding parameter input, selectable pressure transducers 100 bar or 250 |
| bar, selectable temperature sensors PT100, K & … | |
| Technical Specifications | Input voltage 200-250 V; Input frequency 40 Hz – 60 Hz; Weight of unit approx. |
| 8,7 kg, Dimensions (W x H x D) 350 x 450 x 200 mm | |
| Warranty | 12 months |
