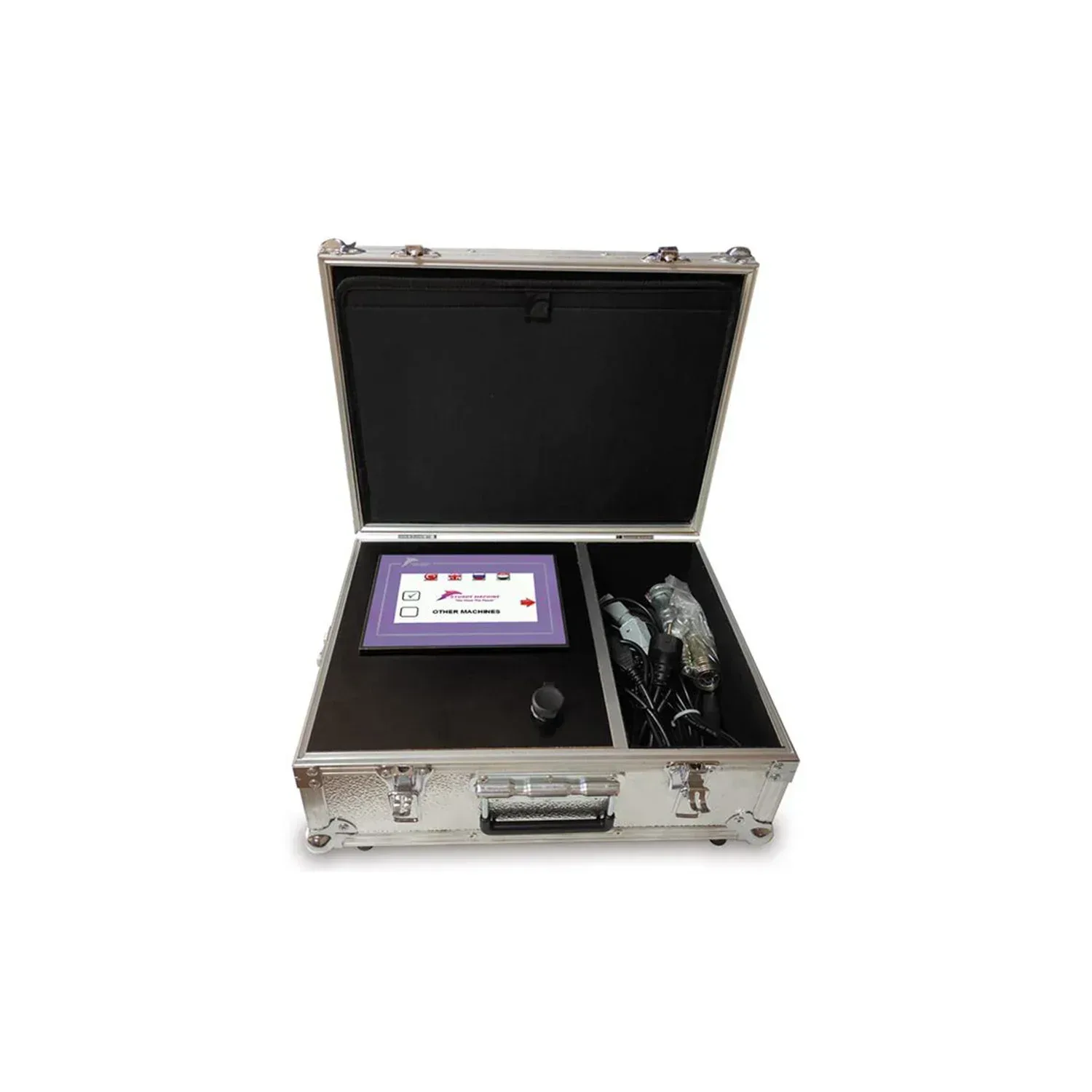

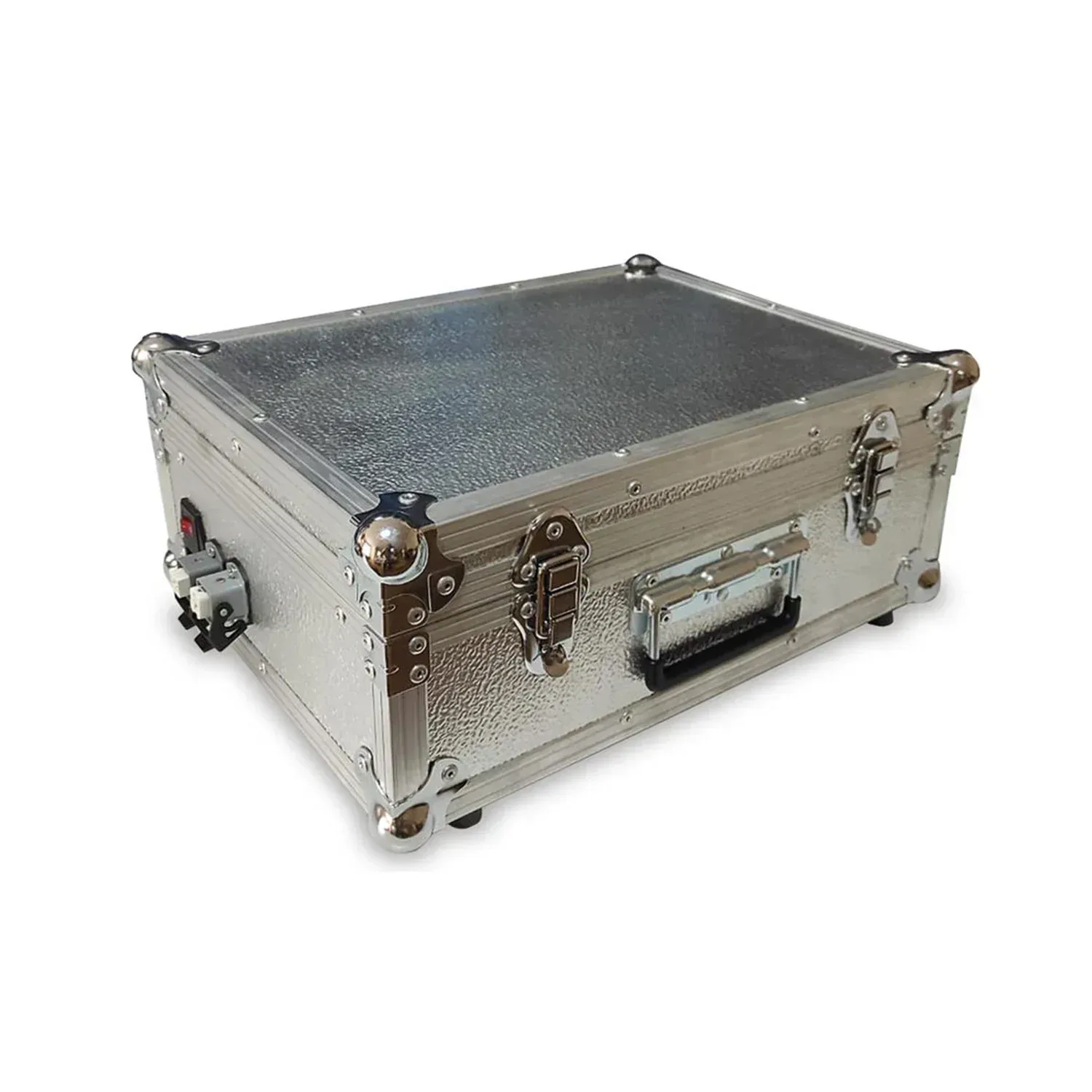

Dl-Sm Data Logger Alüminyum
Automatic data logging 4,000 reports
Data input Manually with a 7” HMI touch screen
Monitoring Parameters Welding pressures, welding times, memory control, heating element temperature
ISO 12176 traceability Commission number, welder ID code, fitting code, 1st and 2nd pipe codes, pipe length, weather conditions, joint number, installing company
Welding standard DVS 2207-1, DVS 2207-11, ISO 21307
Data output USB port for data transfer
Açıklama
Dl-Sm Data Logger Alüminyum
| Automatic data logging | 4,000 reports |
|---|---|
| Data input | Manually with a 7” HMI touch screen |
| Monitoring Parameters | Welding pressures, welding times, memory control, heating element temperature |
| ISO 12176 traceability | Commission number, welder ID code, fitting code, 1st and 2nd pipe codes, pipe length, weather conditions, joint number, installing company |
| Welding standard | DVS 2207-1, DVS 2207-11, ISO 21307 |
| Data output | USB port for data transfer |
| Display | HMI 7” touch monitor |
| Approvals | CE, ISO 9001 |
| Languages | English, Turkish, Russian, Hungaria, Arabia |
| Battery power | (optional) |
| Settings | Manual welding parameter input, selectable pressure transducers 100 bar or 250 |
| bar, selectable temperature sensors PT100, K & … | |
| Technical Specifications | Input voltage 200-250 V; Input frequency 40 Hz – 60 Hz; Weight of unit approx. |
| 8,7 kg, Dimensions (W x H x D) 350 x 450 x 200 mm | |
| Warranty | 12 months |
